Structural Remedial Works Lane Cove NSW
Structural remedial works were carried out in Lane Cove for a private client to address significant structural and service-related defects. These structural remedial works focused on repairing a compromised pier and beam system, as well as resolving a damaged pipe beneath footing conditions that was impacting the building’s foundation stability.
The project required careful coordination to ensure that both structural integrity and essential services were restored. Through a methodical approach, the structural remedial works not only rectified existing damage but also improved the long-term performance of the footing system in Lane Cove.
Scope of works
- Make safe works to stabilise the structure prior to structural remedial works
- Engineering design and coordination for structural remedial works delivery
- Removal and replacement of damaged pier and timber beam
- Installation of new steel beam and permanent footing
- Excavation and plumbing works to repair the damaged pipe beneath footing
Key Challenges
This project presented several technical and logistical challenges that influenced how the structural remedial works were carried out:
- Restricted access in Lane Cove required all structural remedial works to be completed manually, limiting the use of machinery
- The damaged pipe beneath footing required temporary structural support prior to excavation to prevent further movement
- Continuous monitoring was necessary throughout the structural remedial works to maintain stability during footing removal
- Boundary wall demolition was required to enable safe access and proper execution of the structural remedial works
These constraints demanded a controlled and carefully staged approach to ensure both safety and effectiveness.
Methodology and Delivery
Initial Assessment and Make Safe

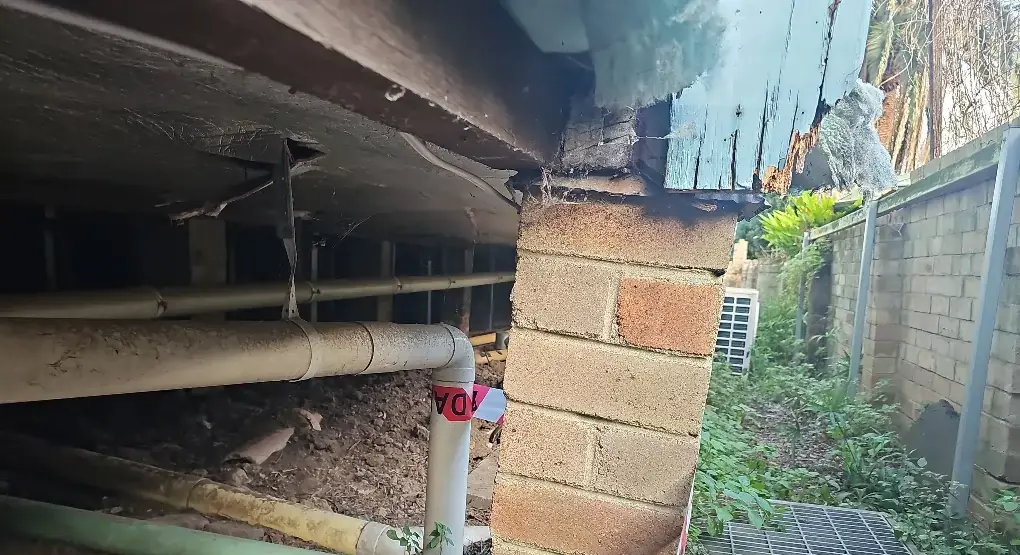

Structural remedial works commenced with a detailed assessment of the damaged pier, beam, and surrounding footing conditions. Temporary stabilisation measures were implemented to make the structure safe prior to further excavation and repair works in Lane Cove.
Beam Replacement
Temporary Support and Structural Removal

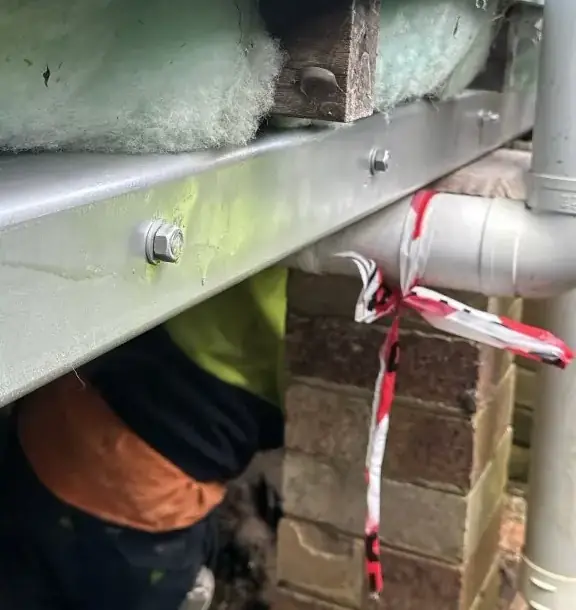

The existing timber beam, which had deteriorated over time, was removed and replaced with a structural steel beam. This was a critical component of the structural remedial works, restoring load-bearing capacity and improving durability.

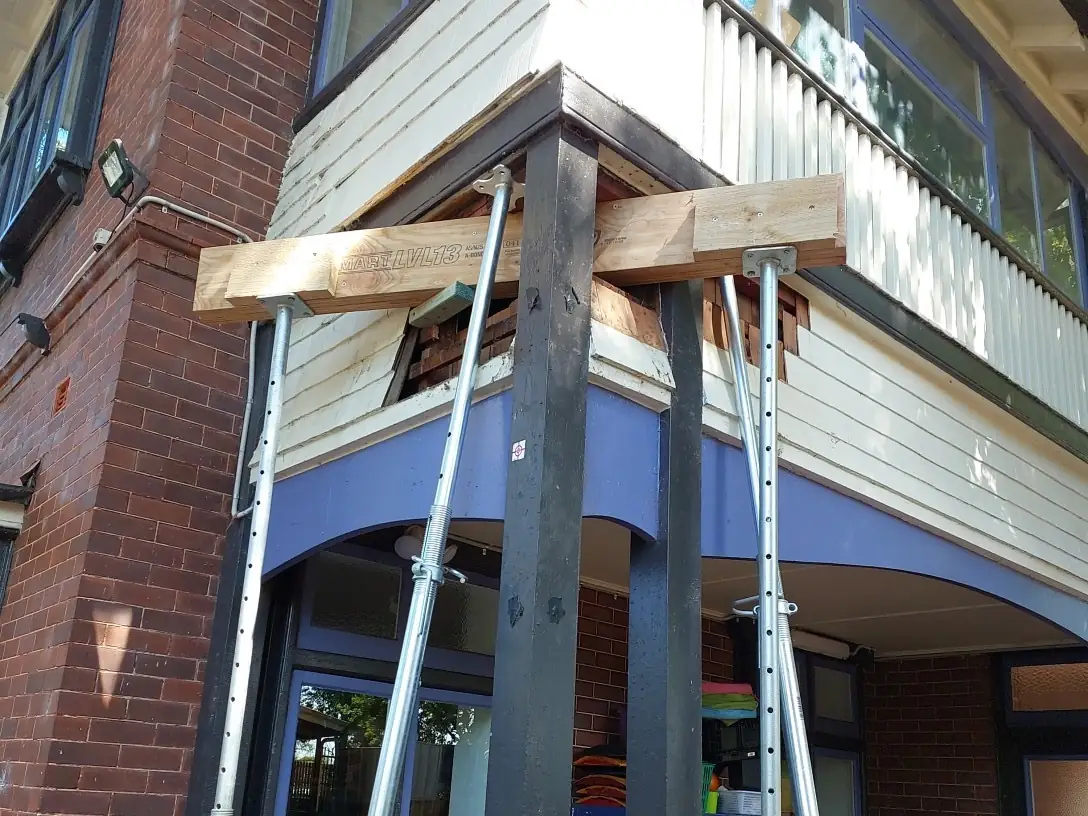

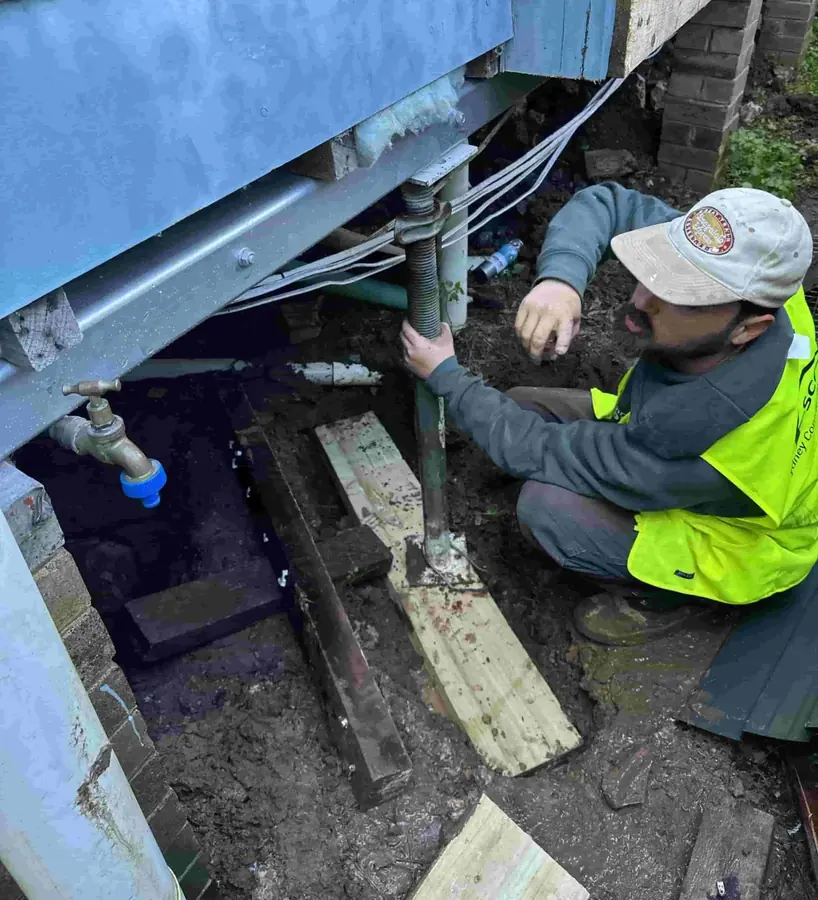

Temporary supports were installed to maintain load transfer while the damaged pier and footing were carefully removed. This ensured that the structure remained stable throughout the structural remedial works process.
Excavation and Service Exposure

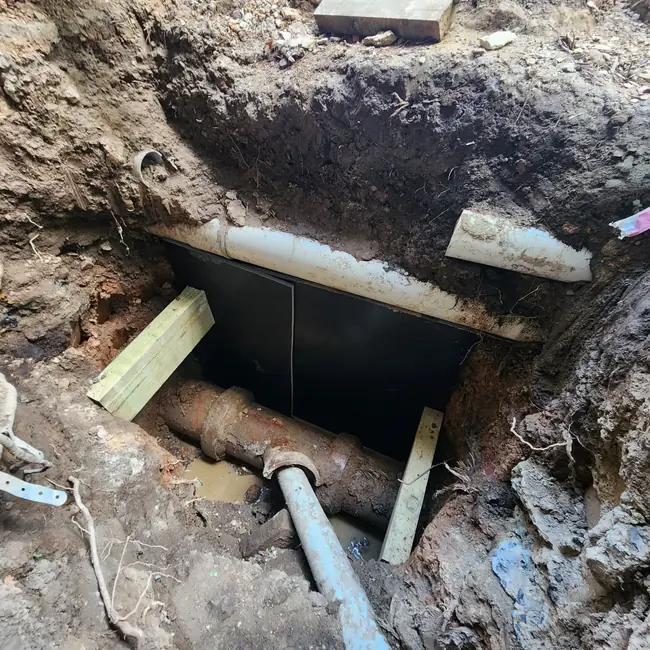

Excavation works exposed the damaged pipe beneath footing, confirming the extent of the issue. Further investigation identified that the affected service was a Sydney Water asset, requiring additional coordination and compliance.
Temporary Services and Coordination
A temporary service connection was installed to manage the damaged pipe beneath footing and maintain functionality while awaiting permanent repairs. Coordination with Sydney Water was essential during this stage of the structural remedial works.
Service Replacement and Reconnection

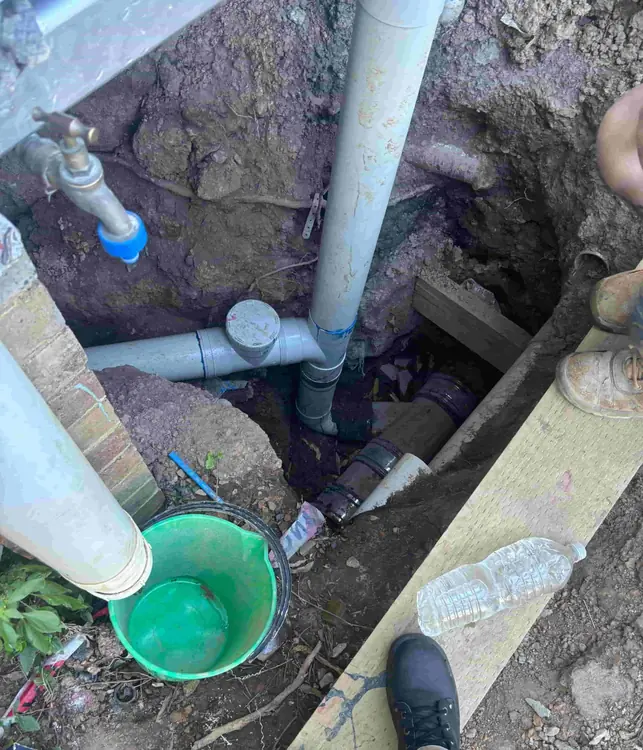

The damaged Sydney Water asset was replaced, and the damaged pipe beneath footing was reconnected. This ensured that both structural and service systems were fully operational.
Footing Construction and Backfilling

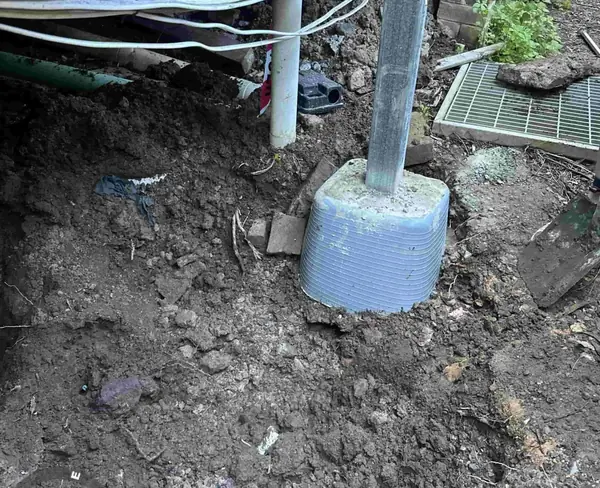

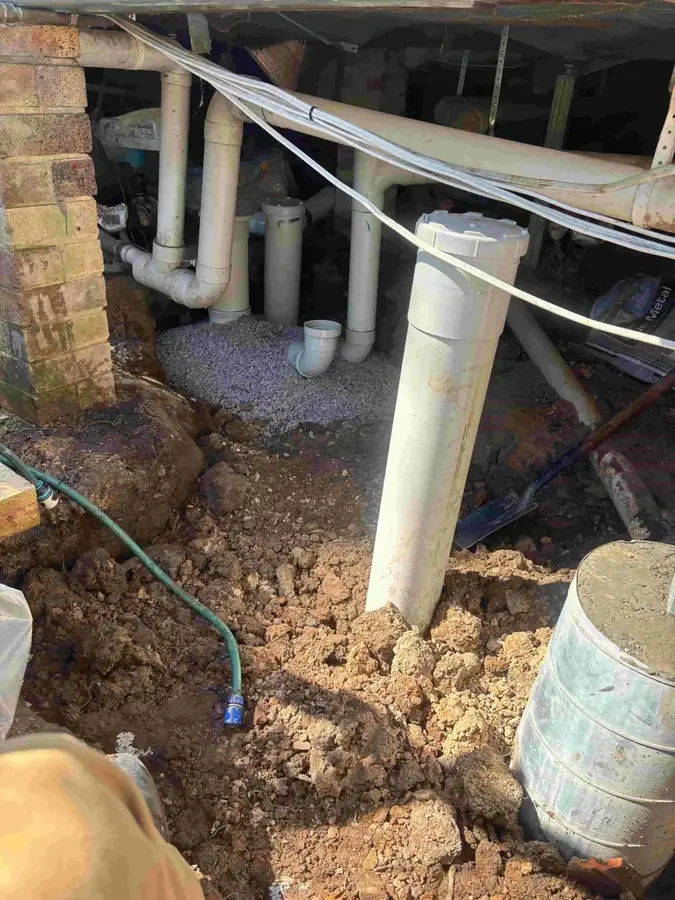

Following completion of the structural remedial works, a new permanent footing was constructed. Backfilling and compaction were carried out to reinstate stable ground conditions and support the upgraded structure in Lane Cove.
Completion
All structural remedial works in Lane Cove were completed successfully, with the damaged pipe beneath footing fully rectified and structural integrity restored. The site was reinstated to a safe and stable condition, ensuring long-term reliability of both the foundation system and associated services.
SCE and Structural Remedial Works
Frequently Asked Questions
1. What are structural remedial works?
Structural remedial works involve repairing or replacing damaged structural elements to restore stability and performance. This can include piers, beams, footings, and associated services.
2. Why are structural remedial works required?
They are typically required when structural elements such as beams, piers, or footings show signs of damage, movement, deterioration, or loss of load-bearing capacity.
3. What are common causes of structural damage?
Common causes include ground movement, water ingress, material deterioration, poor construction practices, and damage to underlying services or foundations.
4. How are structures stabilised during remedial works?
Temporary supports are installed to maintain load transfer while damaged elements are removed and replaced, ensuring the structure remains stable throughout the process.
5. What is involved in replacing a structural beam?
Beam replacement involves removing the existing member, installing a new structural element such as a steel beam, and ensuring proper load transfer to surrounding supports.
6. How are footings repaired or reconstructed?
Footing repairs typically involve excavation, removal of compromised material, installation of new reinforcement if required, and construction of a new or strengthened footing.
7. What happens if a damaged pipe is located beneath a footing?
The area is carefully excavated, the structure is temporarily supported, and the pipe is repaired or replaced before the footing is reinstated.
8. Can remedial works be carried out in confined spaces?
Yes, but restricted access often requires manual handling, careful sequencing, and additional safety controls to manage risks and maintain structural stability.
9. How are services managed during structural repairs?
Temporary connections may be installed to maintain functionality while permanent repairs or replacements are carried out.
10. What is the outcome of properly executed remedial works?
Properly executed remedial works restore structural integrity, improve safety, and extend the service life of the building.
