Structural Repair and Column Reconstruction - Lane Cove
This project was a structural repair and column and pier reconstruction works carried out in Lane Cove (Longueville Road) as part of a school construction project. The works were undertaken to repair structural damage to an existing support system located within a live school environment, requiring careful staging and strict safety management throughout.
The scope of works involved making the structure safe, removing the damaged brick pier, re-establishing a new support system, and completing associated repairs and finishes. The purpose of these structural repair works was to restore the stability of the structure and ensure all affected elements functioned as originally designed, while maintaining safety within an active school site.
Site Overview

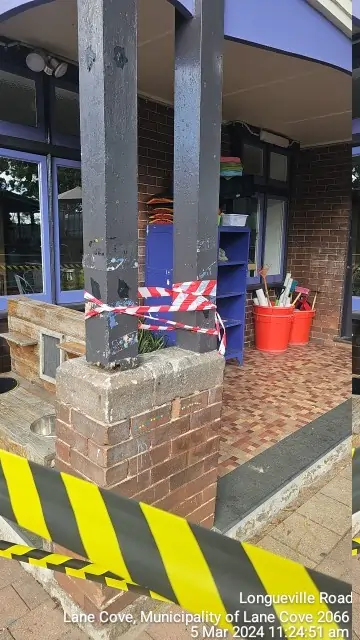

The site contained a damaged column and brick pier, with visible deterioration that was impacting the structural integrity of the support system. The condition of the structure required immediate intervention to prevent further failure.
Temporary fencing was installed around the affected area to isolate the work zone and clearly define the structural repair area within the school environment. This ensured separation between construction activities and student access zones.
Due to the nature of the school construction project, all structural repair works had to be carefully coordinated to maintain safety, minimise disruption, and ensure compliance with strict site protocols. Early intervention was essential to prevent further deterioration of the pier and surrounding structural elements.
Scope of works
The structural repair and reconstruction works included:
- Making the damaged column and brick pier safe prior to removal
- Installation of temporary structural support to maintain load transfer
- Controlled demolition and removal of the damaged pier
- Construction of a new reinforced brick pier to replace the failed element
- Formation of a new column-to-pier connection to restore structural continuity
- Repair of roof shingles affected by structural movement
- Painting and finishing works to restore visual consistency
All structural repair activities were carefully sequenced to ensure stability was maintained at every stage of construction within the school construction project.
Key Challenges
This structural repair project presented several significant challenges due to its location within a live school environment:
- Works were carried out during school hours, requiring strict safety controls and coordination
- Noise management was essential to minimise disruption to ongoing school activities
- Maintaining safe separation between construction zones and pedestrian traffic within the school
- Ensuring worker safety in an environment with fluctuating foot traffic and restricted access areas
These challenges required detailed planning, continuous monitoring, and controlled execution of all structural repair activities involving the brick pier and associated support systems.
Structural Repairs and Reconstruction
The initial phase of the structural repair works focused on stabilising the area surrounding the damaged pier and column system. Temporary supports were installed to maintain structural loads while the compromised elements were safely removed.

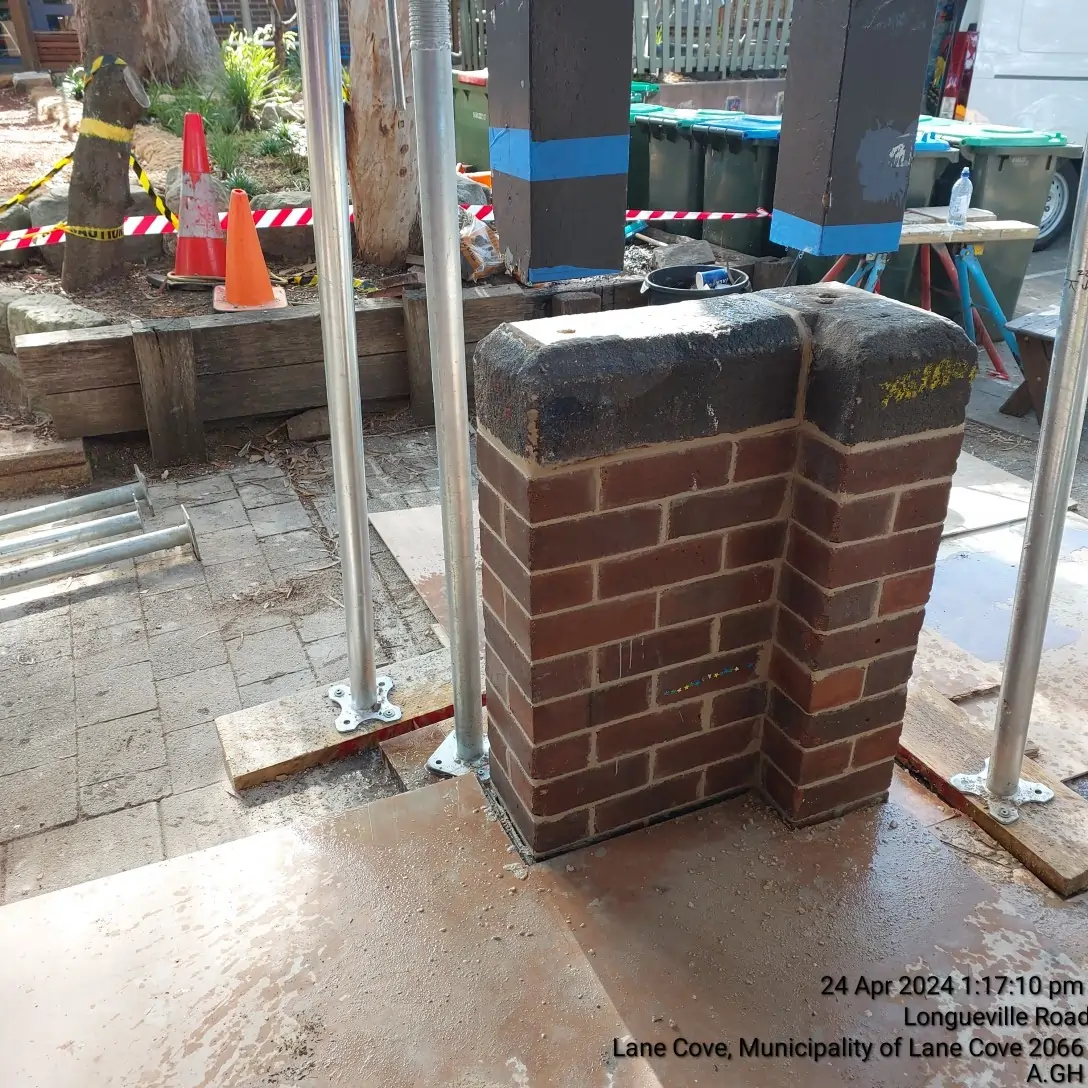

Once stabilised, the damaged brick pier was carefully demolished and removed. A new reinforced pier was then constructed in its place, designed to meet structural requirements and restore full load-bearing capacity.
Following this, a new connection was formed between the reconstructed pier and the existing column. This step was critical in restoring the structural load path and ensuring continuity across the system. High precision was required during alignment and detailing to ensure the new structural repair integrated correctly with the existing building framework.
Associated Repairs and Finishes
In addition to the main structural repair works, several associated repairs were completed to reinstate affected building elements:
- Roof shingle repairs to address movement-related damage
- Painting works to restore visual consistency across repaired areas
- Surface finishing to protect newly constructed elements
These finishing works were essential in completing the school construction project, ensuring that the structural repair outcomes were both functional and visually cohesive. They also provide long-term protection against environmental exposure and wear.
Outcome
The completed structural repair works successfully restored the integrity of the damaged support system within the school construction project in Lane Cove.
The new brick pier, upgraded column connection, and associated finishing works delivered a durable and structurally sound solution. The repaired system now performs as intended, providing reliable long-term support.
Overall, the structural repair project reinstated stability, safety, and functionality to the affected area, ensuring the structure can continue to perform effectively within its school environment.
SCE and Structural Repair and Column Reconstruction
Sydney Contracting Engineers (SCE Corp) delivers specialist structural repair works across complex environments, including school construction projects, live sites, and constrained access conditions. SCE provides end-to-end solutions covering structural repair, pier reconstruction, and load-bearing system rehabilitation, ensuring all works are completed safely, efficiently, and in compliance with relevant standards.
With experience in detailed structural repair involving brick pier replacement and column reinforcement, SCE focuses on restoring structural integrity while minimising disruption to surrounding operations such as active school environments.
Aside from this project, SCE also provides many other civil and building services across Sydney and Greater NSW, including nearby areas such as Chatswood, Artarmon, and North Sydney. SCE is based in Artarmon NSW 2064 and can be contacted at (02) 9051 9590.
Frequently Asked Questions
1. What causes damage to a column and brick pier?
Damage to a column and pier can result from material deterioration, movement, or environmental exposure, often requiring structural repair to restore stability.
2. When is structural repair required for a pier?
Structural repair is required when a pier shows signs of cracking, displacement, or loss of load-bearing capacity, particularly in residential properties in Lane Cove.
3. Why is it important to address pier damage early?
Early structural repair helps prevent further deterioration and reduces the risk of additional damage to connected structural elements.
4. What is involved in repairing a damaged brick pier?
Structural repair of a pier typically includes demolition of the damaged section, reconstruction, and reinstating the connection to the column.
5. How is a structure kept stable during repair works?
Temporary support systems are used during structural repair works to maintain stability while the damaged pier is removed and replaced.
6. What is a column-to-pier connection?
The column-to-pier connection transfers loads from the structure to the foundation, and it is a critical component addressed during structural repair works.
7. Can a damaged pier be repaired instead of replaced?
In many cases, replacement is required where the damage is significant, ensuring the structural repair provides a durable and reliable outcome.
8. What additional works are completed alongside structural repair?
Associated works may include shingle repairs, sealing, and painting to protect the repaired pier and surrounding structure.
9. How long do structural repair works typically take?
Timeframes vary depending on the extent of damage, but structural repair works are generally staged to maintain safety and minimise disruption.
10. What is the outcome of proper structural repair works?
Structural repair restores the load-bearing capacity of the pier and column system, ensuring long-term stability and performance of the structure.
