Substation and Electrical Infrastructure Construction: Managing the Civil Interface

Substation projects depend on more than electrical equipment. Access, earthworks, foundations, drainage, structures, security and staged coordination all influence whether the site can be built and operated safely.

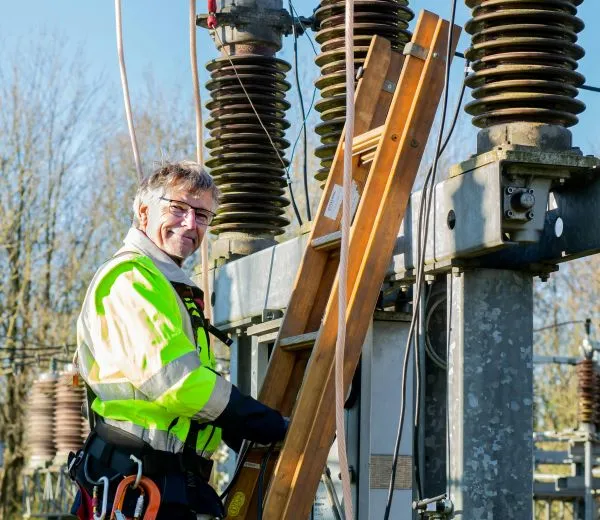

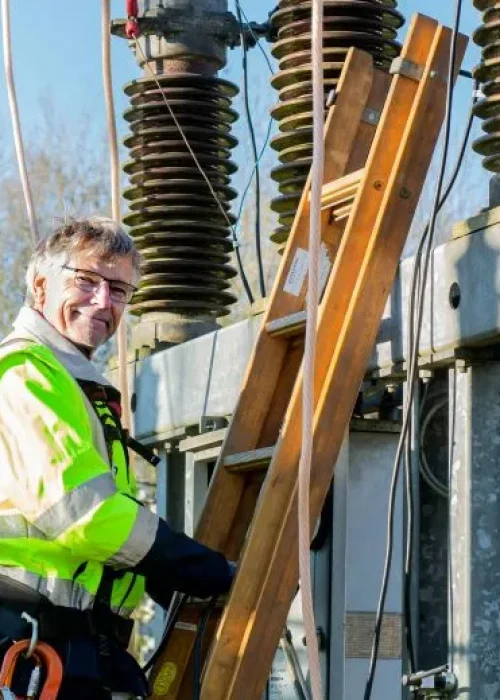

Worker beside electrical substation equipment
Substation delivery requires coordinated civil, structural and specialist electrical work.

Plan the site interfaces before construction starts

A substation or electrical-infrastructure package brings together network requirements, specialist electrical systems and the physical works needed to support them. For projects requiring site establishment, concrete, drainage, access or associated enabling works, start with SCE’s civil construction capability and define the specialist electrical responsibilities separately.

Early coordination reduces clashes between equipment layouts, underground services, foundations, conduits, vehicle movements and stormwater controls. It also gives the principal, designers, contractors and asset owner a clearer basis for programming, procurement and handover.

What the construction package may include

The exact scope varies by network, asset class, site constraints and procurement model. Common interfaces include:

Site and access works

Clearing, controlled excavation, temporary access, haul routes, crane pads, permanent pavements and traffic interfaces.

Foundations and structures

Equipment plinths, transformer bases, cable-support structures, control-room or enclosure works and structural penetrations.

Drainage and containment

Finished levels, stormwater paths, pits, trench drainage and project-specific containment measures coordinated with the approved design.

Underground services

Conduits, pits, trenches, earthing interfaces and service crossings sequenced to avoid rework and preserve access.

Security and boundaries

Fencing, gates, controlled access, barriers and separation zones aligned with operational and safety requirements.

Specialist electrical works

Equipment installation, protection, controls, testing, energisation and network acceptance delivered by the appropriately authorised parties.

A practical delivery sequence

Make the civil-to-electrical handover measurable. Before casting a plinth or closing a trench, confirm the latest equipment drawing, set-out and levels, anchor and penetration details, cable access and the inspections that require specialist attendance. Record who accepts each interface and the evidence needed for release. A delivery booking does not establish that the foundation or access route is ready for the equipment.

  1. Confirm scope and responsibilityMap the asset-owner requirements, design inputs, approvals, hold points, specialist packages and construction boundaries.
  2. Validate site conditionsReview survey, geotechnical information, existing services, access, environmental constraints, drainage and operational interfaces.
  3. Coordinate the designResolve levels, loads, equipment footprints, cable routes, penetrations, maintenance clearances and temporary works before mobilisation.
  4. Plan procurement and stagingAlign long-lead equipment, concrete works, service installations, inspections, outages and specialist attendance with the programme.
  5. Build, inspect and recordUse agreed inspection and test plans, quality records, as-built information and controlled handovers for each package. Identify any outstanding item, its effect on the next activity and who can authorise that activity to proceed. Civil completion does not itself authorise energisation.
  6. Complete specialist testing and acceptanceAuthorised electrical and network parties complete testing, commissioning, energisation and asset-owner acceptance requirements.

When should underground services be installed relative to permanent pavements?

Coordinate underground routes, crossings and required inspections before permanent pavement is completed. Temporary access may still be needed while trenches and equipment foundations are built. Before backfilling or surfacing, confirm the approved service installation, testing and survey records, required protection and release of the relevant hold points. SCE sequences these activities with the appointed designers, electrical specialists and asset owner so finished surfaces are not opened again for avoidable clashes or missing work.

Check the operating service before releasing the civil work

In his earlier Monaro Highway project work, Frank MANESH questioned whether electrical cables in a bridge parapet were still live before planned demolition. The network provider confirmed they were, and the programme was adjusted for the provider to disconnect and reroute them. That experience informs SCE’s approach to service interfaces: confirm the actual asset status and the responsible party’s release before the dependent construction activity starts.

Questions that expose delivery risk early

  • Are the site boundary, easements and access constraints confirmed?
  • Who owns electrical design, protection settings and network approvals?
  • Are equipment loads, plinth details and maintenance clearances coordinated?
  • How will underground services and cable routes be protected?
  • Where will stormwater flow during construction and operation?
  • Are outages, possessions or live-environment controls required?
  • Which inspections, test records and as-built documents are mandatory?
  • What must be complete before specialist installation or energisation?

SCE’s engineering and construction capability

SCE delivers construction and engineering services through its qualified team and established multidisciplinary engineering relationships, including coordinated design-and-construct and engineering, procurement and construction (EPC) scopes. For substation projects, the agreed package defines the civil, structural, building and electrical interfaces. Electrical design, protection settings, network approvals, commissioning, energisation and certification must remain assigned to the appropriately authorised specialists and asset-owner representatives for that project.

Learn about SCE’s engineering and construction team, review our certifications and credentials, explore relevant project experience, or use the project planning tools to prepare an initial brief.

Frequently asked questions

For related questions about scope, site information and delivery, read our civil construction planning questions.

When should underground services be installed relative to permanent pavements?

Coordinate underground routes, crossings and required inspections before permanent pavement is completed. Temporary access may still be needed while trenches and equipment foundations are built. Before backfilling or surfacing, confirm the approved service installation, testing and survey records, required protection and release of the relevant hold points. SCE sequences these activities with the appointed designers, electrical specialists and asset owner so finished surfaces are not opened again for avoidable clashes or missing work.

What civil works can support a substation project?

Depending on the approved scope, civil works may include access, earthworks, drainage, foundations, equipment plinths, cable trenches, pits, conduits, pavements, fencing and associated structures.

Does SCE design or commission high-voltage electrical systems?

SCE provides construction and engineering services through its qualified team and multidisciplinary engineering relationships. On a substation project, high-voltage design, protection, commissioning and energisation require specifically appointed and appropriately authorised electrical specialists and asset-owner approvals. The agreed responsibility matrix identifies those parties and their obligations; a civil handover does not transfer their authority to the construction team.

What information is needed before pricing the civil package?

A useful brief includes current drawings, survey and geotechnical information, equipment loads and footprints, service locations, access constraints, staging requirements, approvals, programme dates and the responsibility matrix.

Why do drainage and levels matter on substation sites?

Levels and drainage affect equipment foundations, cable routes, access, erosion control and long-term asset operation. They should be coordinated before excavation and concrete works begin.

Can substation-related construction be staged?

Yes. The programme should identify each area to be released, equipment and drawing dependencies, outage or isolation arrangements, inspections and the party accepting the handover. Any incomplete item must state whether it prevents the following activity. Civil completion and permission to energise are separate decisions controlled by the appointed parties.

How can SCE review a potential project?

Provide the available scope, drawings, location, programme, access constraints and required delivery interfaces through the Contact SCE page. The team can then assess suitability and identify the next information needed.
