Ground and groundwater
Geotechnical models, investigation data, groundwater conditions and uncertainty registers inform the approved excavation and support basis. Construction observations must feed the defined verification and escalation process.
Tunnel construction coordination guide
Tunnel Construction Coordination and the Engineering Interfaces That Shape Delivery
Tunnel work brings ground behaviour, groundwater, temporary works, excavation, logistics, services, monitoring, safety and asset-owner requirements into one tightly controlled construction environment. This guide explains the delivery interfaces a defined tunnel package must coordinate. It does not offer tunnel design consultancy.
Role boundary: SCE can review buildability, access, construction staging, procurement, programme, site logistics and delivery interfaces where engaged. Geotechnical, structural, fire, ventilation, electrical and other design decisions, certifications and asset-owner approvals remain with the appropriately qualified, registered or appointed parties responsible for them.
Why Coordination Matters Underground
Above ground, a late interface decision may disrupt a work zone. Underground, the same decision can affect ground support, water control, ventilation, plant movement, emergency access, monitoring or the sequence needed to keep the excavation stable and safe.
Transport for NSW's current tunnel standard applies across the asset lifecycle and spans civil, structural, fire, mechanical, electrical, signalling, environmental, operational and maintenance requirements. The issued project requirements determine what applies to a particular asset and package.
A defined package should identify
- the asset owner, delivery model and approved technical basis;
- ground, groundwater and adjacent-asset assumptions;
- design, review, hold-point and acceptance responsibilities;
- work boundaries, temporary states and construction sequence;
- monitoring, testing, records and handover requirements.
Seven Interfaces That Shape Tunnel Delivery

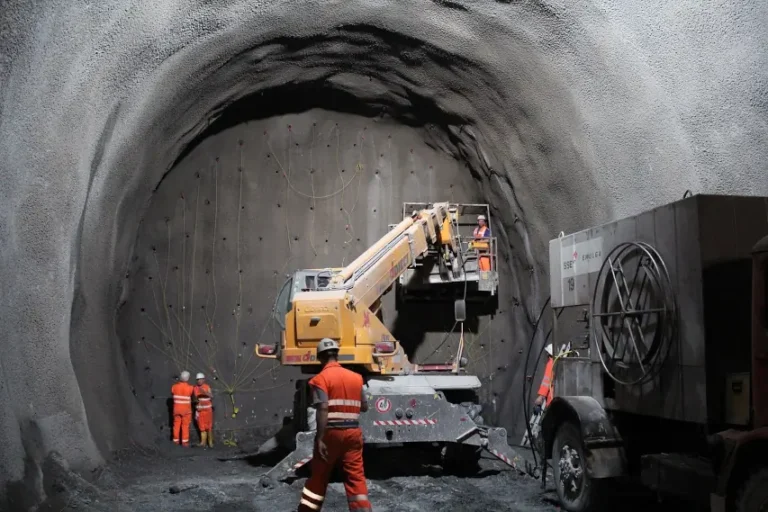

Excavation and temporary states
The permanent outcome depends on safe temporary conditions. Work packs must align excavation steps, initial support, temporary works, access, exclusion zones, hold points and authorised changes.
Water and environment
Inflows, drawdown, treatment, discharge, sediment, spoil, noise, vibration, dust, contaminated material and community impacts require project-specific controls, monitoring and records.
Plant, people and logistics
Restricted access intensifies interactions between people, mobile plant, lifting, deliveries, spoil removal, ventilation ducts, services and emergency routes. The sequence must keep these pathways workable.
Existing assets and services
Rail, road, buildings, utilities and operating infrastructure may impose protection, access, possession, monitoring and approval requirements. Interfaces should be assigned, not left implicit.
Life-safety systems
Ventilation, fire and smoke management, communications, lighting, power, drainage, egress and emergency response must follow the issued design and commissioning requirements for the asset.
Monitoring and assurance
Survey, instrumentation, inspections, testing, non-conformance controls, photographs, as-built data and asset information provide the evidence needed to manage change and support acceptance.
Construction Method Follows the Approved Project Basis
Cut-and-cover, mined excavation, roadheader work, tunnel-boring machines, shafts, caverns and trenchless methods create different interfaces. The method is not selected by a generic label; it follows the asset purpose, geometry, ground and water conditions, surrounding constraints, programme, approved design, safety requirements and available construction system.
| Method or element | Typical delivery focus | Interfaces to define |
|---|---|---|
| Cut-and-cover | Open excavation with temporary retention and staged permanent works | Traffic, utilities, excavation support, groundwater, public access and reinstatement |
| Mined or roadheader excavation | Progressive excavation and ground support from a portal, shaft or underground access | Face sequence, support classes, ventilation, spoil, services, survey and observational controls |
| Tunnel-boring machine | Mechanised excavation with segmental lining and continuous logistics | Launch and retrieval, rings, grout, spoil, services, guidance, maintenance and production data |
| Shafts and caverns | Vertical access and larger underground spaces | Lifting, edge protection, support, groundwater, ventilation, emergency access and connecting drives |
These are general coordination examples only. The issued project documents and responsible technical parties determine the method and controls for the exact works.
Treat Safety Planning as Part of the Construction Method
SafeWork NSW identifies work in or near a tunnel as high-risk construction work. The applicable duties include preparing a site-specific Safe Work Method Statement before the work starts and making it available to workers and supervisors. A tunnel package also needs project-specific arrangements for changing ground, water, air, plant, access and emergency conditions.
- Define authorised methods, hold points and stop-work triggers.
- Coordinate ventilation, dust, gases, heat, noise and visibility controls.
- Separate people, mobile plant, lifting and material routes.
- Maintain communications, lighting and emergency access.
- Update the work method when conditions or interfaces change.
- Keep inspections, monitoring and briefings traceable.
A Practical Coordination Sequence
Confirm the basis
Reconcile scope, issued designs, specifications, investigations, approvals, asset-owner requirements and responsibility matrices.
Map interfaces
Assign each ground, water, structure, service, logistics, environmental, operational and stakeholder interface to a responsible party and required deliverable.
Plan the sequence
Develop work packs that connect access, temporary states, plant, support, services, testing, hold points, possessions and handbacks.
Control change
Record observations, departures and unexpected conditions, make the work safe, and use the approved review and authorisation pathway before proceeding.
Verify the work
Complete inspections, survey, testing, monitoring and non-conformance closeout against the acceptance plan.
Hand over evidence
Compile approved changes, as-builts, test results, asset data, commissioning records, warranties and maintenance information.
Use the Correct SCE Pathway
Defined tunnel construction scope
Review the Tunnel Construction service page, which remains the owner for transactional tunnel-construction demand.
Broader rail and underground civil works
Use the Rail, Stations, Platforms, Tunnels and Substations hub for the wider service context.
NSW planning context
Read Tunnel Construction NSW for a separate planning-focused overview.
Relevant delivery proof
Review SCE's Civil Infrastructure Projects without treating project examples as proof of an unlisted tunnel-design role.
Broader civil capability
Use the Civil Services hub to understand SCE's wider construction delivery capability.
Defined enquiry
Contact SCE with the project stage, location, issued scope, access constraints, programme and responsible technical parties.
Frequently Asked Questions
What is tunnel construction coordination?
It is the process of connecting the approved technical basis with excavation, temporary states, plant, logistics, safety, environmental controls, monitoring, testing, stakeholder interfaces and handover requirements so the work can proceed through controlled stages.
Does SCE provide tunnel design consultancy?
This guide does not present SCE as a tunnel design consultancy. SCE can review buildability, access, staging, procurement, programme, logistics and construction delivery interfaces where engaged. Design, certification and asset-owner approvals remain with the appropriately qualified, registered or appointed parties responsible for them.
What information should a tunnel construction package include?
It should identify the asset owner, issued designs and specifications, ground and groundwater information, work boundaries, temporary states, access, logistics, services, safety and environmental controls, monitoring, hold points, testing, responsibilities and acceptance evidence.
Why are ground and groundwater interfaces important?
Ground behaviour and water conditions affect excavation, support, inflow control, settlement, adjacent assets, monitoring and the safe construction sequence. Actual observations must be managed through the project's defined verification and change pathway.
Is tunnel excavation high-risk construction work in NSW?
SafeWork NSW identifies work carried out in or near a tunnel as high-risk construction work. Applicable WHS duties include a site-specific Safe Work Method Statement before the work starts, together with the controls required for the exact hazards and work method.
How are unexpected underground conditions managed?
The immediate priority is to make the work safe and follow the approved stop-work, notification, monitoring and technical review process. The work method or design should not be changed informally; authorised parties must assess and document the response.
What should be provided when contacting SCE about tunnel work?
Provide the location, project stage, asset owner, issued scope and designs, ground and water information, access and operational constraints, programme, procurement status, testing requirements and responsibility matrix. SCE can then assess whether the construction package is sufficiently defined for discussion.
Move from Interfaces to a Defined Construction Review
Bring the issued scope, project stage, technical responsibilities, access constraints and programme. SCE can review the construction package and identify the next practical delivery discussion.
Current NSW References
- Transport for NSW — TS 01722 Tunnels
- SafeWork NSW — Excavations and earthmoving plant in construction
- SafeWork NSW — Codes of practice
Official sources and fresh query-by-URL Search Console evidence were checked on 27 August 2026. Project requirements, standards and legal obligations must be checked for the exact work.
