Major Substation Civil Construction NSW

SCE Corp delivers major substation civil construction packages across Sydney and NSW. We coordinate earthworks, foundations, concrete structures, drainage, service pathways, access works and building interfaces around equipment requirements, staged construction and civil handover.

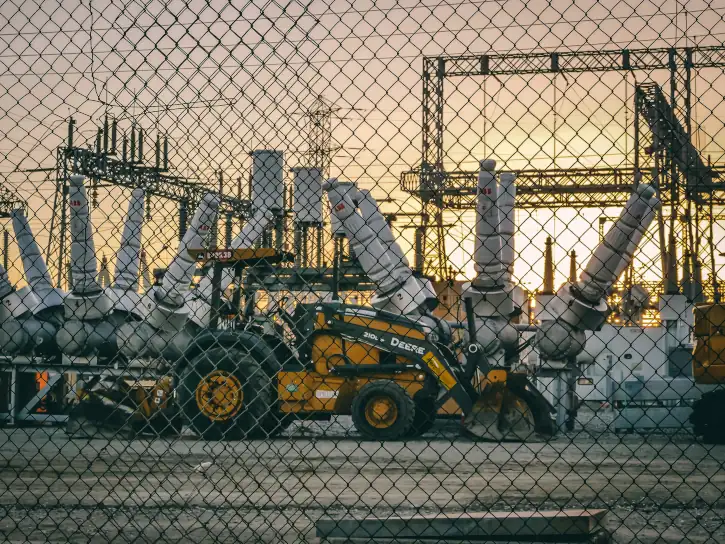

Electrical infrastructure and substation equipment at a project site

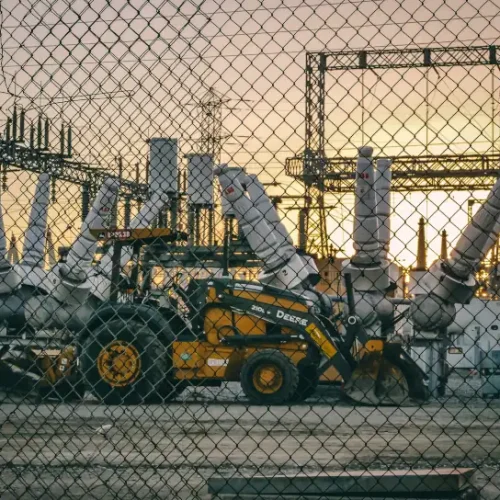

Electrical infrastructure and substation equipment at a project site

Integrated Civil Delivery for Complex Substation Sites

SCE brings together larger civil work fronts, substantial quantities and complex interfaces around substation infrastructure. Explore Substation Construction for the wider service scope.

SCE combines engineering and design, procurement, construction, testing, certification and handover in a coordinated delivery package. Its qualified team and discipline specialists resolve the foundations, structures, services and equipment interfaces together.

The proposal identifies the included civil, electrical and specialist services, with the necessary licences and authorisations assigned to each discipline. Asset-owner and network responsibilities for isolations, energisation and operational acceptance are agreed before the affected work.

Major Substation Civil Construction Scope

The final construction boundary must follow the issued design, asset-owner requirements, existing services, site access, environmental controls, staging plan and nominated specialist interfaces. A suitable package may include:

  • Bulk excavation, earthworks, grading and engineered fill placement
  • Equipment foundations, reinforced bases and major concrete structures
  • Drainage networks, pits and documented water-management works
  • Cable trenches, conduits, duct banks and service pathways
  • Access roads, hardstands, pavements, kerbs and reinstatement
  • Structural or building interfaces for switch rooms and enclosures
  • Staged civil works around live, adjacent or specialist-controlled assets
  • Inspection records, civil as-builts and agreed close-out information

When the Major Pathway May Be Suitable

There is no fixed public size, cost or duration threshold. The major pathway may be appropriate when the civil package has substantial quantities, multiple work fronts, complex staging, significant interfaces or detailed handover requirements.

Scale and quantities

Earthworks, concrete, drainage, service pathways, access works or structural interfaces are substantial enough to require coordinated civil planning.

Staging and access

Multiple stages, constrained access, operational interfaces, environmental controls or specialist dependencies must be integrated into the work sequence.

Interface load

Civil works connect with electrical, structural, utility, building, testing, approval or asset-handover activities controlled by other responsible parties.

Records and handover

Hold points, inspections, testing inputs, as-built information and civil completion records require a defined close-out pathway.

Resolve Equipment Interfaces Before Foundations Are Poured

The civil drawings and equipment information need to describe the same installation. Confirm the latest foundation dimensions, bolt arrangements, cable entries, levels and embedded items with the responsible design and equipment teams before releasing the relevant concrete work. Identify outstanding supplier information early so an assumed opening or fixing detail does not become a late change to a completed base.

Plan the equipment delivery route alongside the permanent roads, drainage and cable trenches. Temporary access and lifting requirements must be coordinated with the responsible specialists, particularly where earlier works will obstruct later deliveries. Define the civil inspections, survey records and completion boundaries needed before equipment installation. SCE coordinates these construction dependencies; electrical installation, energisation and commissioning proceed through their separately appointed teams and network controls.

Information Needed Before Civil Delivery

A larger civil package should not proceed on broad assumptions. The following controls help determine whether the scope is sufficiently defined for review.

  • Current drawings, specifications, design status, levels and loads
  • Survey, geotechnical and existing-service information
  • Asset-owner, network and site-access requirements
  • Outage, isolation and operational dependencies allocated to others
  • Approved civil interfaces and responsibility matrix
  • Environmental, traffic, public and adjacent-asset controls
  • Hold points, inspection requirements and testing interfaces
  • Procurement status, staging logic and handover criteria

Construction and Specialist Responsibilities

Experience integrating civil structures with substation equipment. Frank MANESH's career includes concrete slabs for transformers and capacitors, Hebel noise walls and cladding on a TransGrid substation project in the ACT. His major infrastructure experience also includes earthworks, drainage, underground services and staged construction.

For a major substation civil package, SCE brings these disciplines together in the programme: work fronts, foundations, service routes, access and specialist interfaces. Procurement and inspection requirements are coordinated early so civil completion supports the equipment installation and subsequent project stages.

SCE construction role

SCE manages the engineering inputs, procurement, construction sequence, specialist coordination, inspections, testing, certification and handover records for the agreed package. Design and buildability reviews connect the civil structures to the equipment and installation programme.

Client and specialist roles

Designers, electrical contractors, registered practitioners and certifiers perform their appointed specialist functions within the delivery team. The asset owner and network operator retain independent approvals, operating controls, isolations, energisation and technical acceptance.

From Civil Planning to Handover

Review

Assess scope, design status, quantities, site information, access, services, controls and commercial fit.

Define

Confirm the civil boundary, exclusions, responsibilities, interfaces, dependencies and required records.

Plan

Develop the accepted sequence, logistics, work fronts, hold points and civil inspection pathway.

Coordinate

Manage the agreed civil interfaces with client, designer, asset-owner and specialist-controlled activities.

Deliver and close out

Complete the civil works and records within the accepted scope, supporting the responsible parties' handover process.

Is the Scope Better Suited to the Minor Pathway?

Localised excavation, smaller concrete works, short trenches, drainage repairs, access repairs or limited reinstatement may be better suited to Minor Substation Construction. The appropriate pathway depends on the actual quantities, staging, interfaces and responsibilities, not the project label alone.

Information for a Major Civil Scope Review

Current project information helps determine whether the proposed civil works are sufficiently defined and suitable for further discussion.

  • Site location, asset owner and operational context
  • Scope summary, drawings and specifications
  • Design status and nominated professional responsibilities
  • Survey, geotechnical and existing-service information
  • Earthworks, concrete, drainage and service-pathway quantities
  • Access, logistics, staging and work-front constraints
  • Outage, isolation and electrical-interface dependencies
  • Environmental, traffic and adjacent-asset controls
  • Hold points, inspections, records and handover criteria
  • Target programme and procurement status

Frequently Asked Questions

For the ground, access, scope and delivery decisions behind this work, explore our civil construction planning questions.

What makes a substation civil package major?

There is no fixed public size, cost or duration threshold. A package may suit the major pathway when it has substantial civil quantities, several work fronts, complex staging, constrained access, significant specialist interfaces or detailed inspection and handover requirements.

What major substation civil works does SCE deliver?

SCE delivers bulk earthworks, foundations, reinforced concrete structures, drainage, pits, cable trenches, conduits, duct banks, access roads, hardstands, structural interfaces and reinstatement. Engineering, procurement, specialist coordination, testing, certification and handover are planned as an integrated package around the equipment and site requirements.

How does SCE coordinate civil and electrical substation design?

SCE brings the civil, structural and electrical disciplines together around the equipment layout, loads, foundations, cable routes and installation sequence. The proposal sets out the included design, construction and specialist services, delivered by appropriately qualified and authorised parties. The network operator retains control of isolations, energisation and operational acceptance.

Who retains asset-owner, network and project approvals?

The asset owner and network operator retain their independent approval and operating responsibilities. Appointed designers, registered practitioners, electrical contractors and certifiers provide the specialist designs, inspections and certification required for the work. SCE coordinates those inputs with its civil delivery and records each responsibility in the project plan.

How are staging, outages and operational interfaces managed?

The issued programme and responsibility matrix must identify staging, access, outage, isolation and operational dependencies. The parties authorised to plan, approve and control those activities retain those responsibilities, while SCE plans its accepted civil work around the confirmed constraints and interfaces.

What information is needed for a major civil scope review?

Provide the site location, scope summary, current drawings and specifications, design status, survey and service information, civil quantities, access and staging constraints, outage or isolation dependencies, interface responsibilities, hold points, handover requirements and target programme where available.

How can early coordination reduce rework on major substation civil works?

SCE reviews the civil drawings against equipment dimensions, anchor arrangements, cable entries and installation access before foundations are poured or services concealed. Supplier information, inspection points and delivery routes are resolved with the design and installation teams early. This helps avoid rebuilding completed bases, reopening finished surfaces or blocking later equipment deliveries.

How does major substation construction differ from the minor pathway?

The major pathway is intended for larger or more complex civil packages with substantial quantities, staging or interfaces. The minor pathway is intended for smaller, clearly bounded works such as localised excavation, concrete, trenches, drainage, access repairs or reinstatement. The actual issued scope determines the appropriate pathway.

Discuss a Defined Major Substation Civil Package

Send the available scope, drawings, civil quantities, site information, design status, access and staging constraints, service and electrical interfaces, responsibilities, handover criteria and target programme. SCE will discuss the engineering, construction sequence, procurement and handover requirements with you. Use our planning tools to organise the available information.
