Defined civil works for smaller or localised substation packages

Minor Substation Civil Construction NSW

SCE Corp delivers minor substation civil construction across Sydney and NSW, including localised excavation, concrete bases, trenches, drainage, access repairs and reinstatement. Our engineering and construction capability supports precise coordination around existing services, equipment interfaces and the asset owner’s operational requirements.

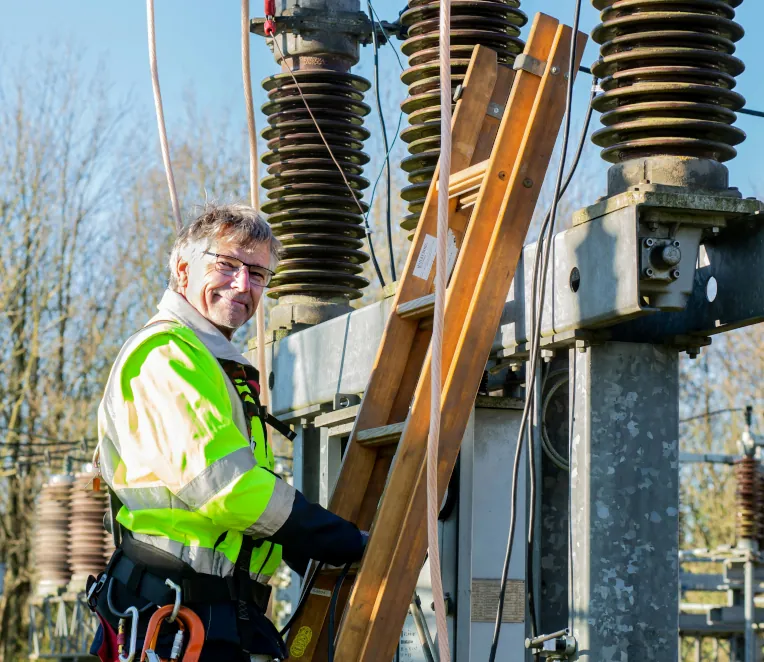

Electrical infrastructure and substation equipment at a project site
Electrical infrastructure and substation equipment at a project site

Localised Civil Works Around Substation Assets

SCE delivers smaller civil packages around substation infrastructure, with measured quantities, clear work areas and coordinated specialist interfaces. For the wider range of services, see Substation Construction service.

SCE brings engineering and design, procurement, construction, inspection, testing, certification and handover together for a localised work package. Its team selects the disciplines, plant and construction method to suit the existing assets and restricted work area.

The agreed scope identifies the civil and specialist services, including the qualified electrical and design inputs required for the work. Asset-owner and network controls for access, isolations, energisation and acceptance are coordinated before construction starts.

Minor Substation Civil Construction Scope

The final construction boundary must follow the issued design, asset-owner requirements, existing services, site access, environmental controls and nominated specialist interfaces. A suitable package may include:

When the Minor Pathway May Be Suitable

There is no fixed public cost, size or duration threshold. The minor pathway may be appropriate when the civil works are clearly bounded, use limited quantities and work fronts, and can be coordinated without the scale or interface load expected on a major package.

Bounded quantities

Excavation, concrete, drainage, trenches, access works or reinstatement can be clearly measured and described.

Limited work fronts

The civil package is concentrated in one or a small number of areas with a practical construction sequence.

Defined interfaces

Electrical, network, design, approval, access and operational dependencies are identified and allocated to the responsible parties.

Proportionate close-out

Required inspections, records, as-built information and handover inputs are known and proportionate to the civil scope.

Information Needed Before Civil Delivery

Even a small civil package requires a confirmed boundary and safe interfaces. Useful review inputs include:

  • Current drawings, specifications, design status, levels and loads
  • Survey, geotechnical and existing-service information
  • Asset-owner, network and site-access requirements
  • Outage, isolation and operational dependencies allocated to others
  • Approved civil interfaces and responsibility matrix
  • Environmental, traffic, public and adjacent-asset controls
  • Hold points, inspection requirements and testing interfaces
  • Procurement status, proposed timing and handover criteria

Construction and Specialist Responsibilities

Substation experience applied to smaller work packages. Frank MANESH's career includes TransGrid substation civil works in the ACT: concrete slabs for transformers and capacitors, Hebel noise walls and cladding. SCE applies the same attention to interfaces and construction quality to a smaller, clearly defined package.

The delivery plan considers existing services, access, excavation or concrete work, specialist inspections and reinstatement. A modest work area can still involve critical operating constraints; those requirements are addressed in the agreed scope and sequence.

SCE construction role

SCE manages the localised work from design and construction planning through procurement, delivery, inspection, testing, certification and handover. The team coordinates specialist attendance and records the condition of services, buried works and reinstated areas at each stage.

Client and specialist roles

Appropriately qualified designers, electrical contractors and certifiers provide the specialist services identified in the delivery plan. The asset owner and network operator retain independent approvals and operational controls, including isolations, energisation and acceptance.

A Small Work Area Can Have Significant Dependencies

A short trench or replacement plinth may involve little material but still depend on service verification, authorised access, specialist attendance or an outage. Confirm those dependencies before setting the mobilisation date. Include the access needed by operations staff and later equipment deliveries when defining the work area and temporary arrangements.

Plan the inspections that must occur before excavation is backfilled or concrete interfaces are concealed. Agree whether reinstatement is temporary or final, which records the asset owner needs, and whether a later specialist visit will require the area to remain accessible. These details help prevent a small civil package from being priced as a single uninterrupted visit when its actual delivery requires several stages.

A Controlled Minor-Package Pathway

Review

Assess scope, design status, quantities, site information, access, services, controls and commercial fit.

Define

Confirm the civil boundary, exclusions, responsibilities, interfaces, dependencies and required records.

Plan

Develop the accepted sequence, logistics, hold points and civil inspection pathway.

Coordinate

Manage the agreed civil interfaces with client, designer, asset-owner and specialist-controlled activities.

Deliver and close out

Complete the civil works and records within the accepted scope, supporting the responsible parties' handover process.

Does the Scope Need the Major Pathway?

Substantial earthworks or concrete quantities, several work fronts, complex staging, constrained access, significant operational interfaces or detailed handover requirements may be better suited to Major Substation Civil Construction. The issued scope determines the appropriate pathway, not the project label alone.

Information for a Minor Civil Scope Review

Current project information helps determine whether the proposed civil works are sufficiently defined and suitable for further discussion.

  • Site location, asset owner and operational context
  • Scope summary, drawings and specifications
  • Design status and nominated professional responsibilities
  • Survey, geotechnical and existing-service information
  • Excavation, concrete, drainage and service-pathway quantities
  • Access, logistics and work-area constraints
  • Outage, isolation and electrical-interface dependencies
  • Environmental, traffic and adjacent-asset controls
  • Hold points, inspections, records and handover criteria
  • Proposed timing and procurement status

Frequently Asked Questions

For the ground, access, scope and delivery decisions behind this work, explore our civil construction planning questions.

What is minor substation civil construction?

Minor substation civil construction covers localised work such as a replacement equipment base, short cable trench, drainage repair or reinstatement. SCE plans the engineering, construction and specialist inputs around the existing assets and operating requirements. The smaller footprint still requires the appropriate inspections, records and asset-owner controls.

What minor substation civil works does SCE deliver?

SCE delivers localised excavation, equipment bases and plinths, concrete structures, short cable trenches, pits, conduits, drainage, access repairs and reinstatement. The package brings together engineering, materials, suitable plant, specialist coordination, inspection, testing, certification and handover for the agreed work.

How does SCE coordinate specialist design and electrical work?

SCE identifies the design, electrical and certification disciplines needed for the localised work and coordinates them with the civil construction plan. Those services are delivered through appropriately qualified and authorised team members and specialists. The network operator retains its operating responsibilities, including control of isolations, energisation and acceptance.

Who is responsible for approvals, network requirements and specialist design?

The delivery plan identifies the client, asset-owner and network approvals, the appointed design and electrical disciplines, and the required inspections and certification. SCE coordinates the construction and specialist interfaces so responsibilities are clear before work begins. Independent approvals and network operating decisions remain with the authorised parties.

When is the minor pathway suitable?

There is no fixed public cost, size or duration threshold. A package may suit the minor pathway when the civil works have bounded quantities, limited work fronts, a practical sequence, defined specialist interfaces and proportionate inspection and handover requirements.

What information is needed for a minor civil scope review?

Provide the site location, scope summary, current drawings and specifications, design status, survey and service information, civil quantities, access constraints, outage or isolation dependencies, interface responsibilities, hold points, handover requirements and proposed timing where available.

Why can a small substation civil job require several site visits?

Access windows, service verification, concrete strength, inspections and specialist attendance can separate a small job into several stages. SCE confirms the sequence before mobilisation, including what must be inspected before backfilling or concealment and whether reinstatement is temporary or final. This makes the proposed programme and quotation clearer than assuming every activity can be completed in one visit.

When should a scope move to the major pathway?

The major pathway may be more suitable when the package has substantial civil quantities, several work fronts, complex staging, constrained access, significant specialist or operational interfaces, or detailed inspection and handover requirements. The actual issued scope determines the appropriate pathway.

Discuss a Defined Minor Substation Civil Package

Send the available scope, drawings, civil quantities, site information, design status, access constraints, service and electrical interfaces, responsibilities, handover criteria and proposed timing. We will discuss the civil scope, specialist interfaces and construction sequence needed to progress the package. Our planning tools help you organise the available project information.
