Timber Skyscrapers NSW: Mass Timber Construction Guide

How engineered timber can support taller buildings and why fire, moisture, structure, services, approvals and procurement must be resolved as one coordinated delivery system.

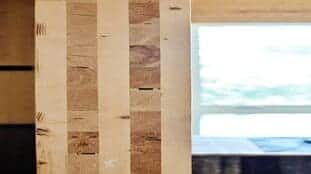

Timber structural elements inside a building

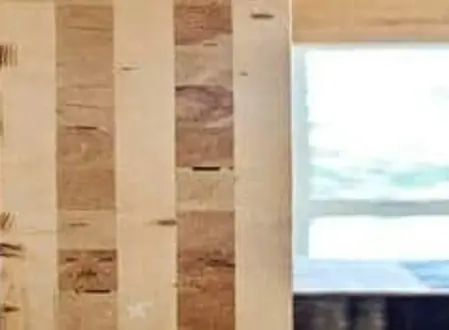

Timber structural elements inside a building

How do mass-timber and hybrid building systems work?

“Timber skyscraper” is a useful public term, but real projects are usually mass-timber or hybrid buildings. They combine engineered timber components with project-specific concrete, steel, façade, fire-protection and services solutions. The right arrangement depends on building height, use, grid, spans, fire strategy, acoustics, exposure, supply chain and approval pathway.

For NSW clients, the practical starting point is a buildability review connected to the wider building-services delivery pathway. Architects and appropriately appointed engineers develop the design; certifiers and authorities assess compliance; contractors plan procurement, sequencing, temporary conditions, installation and close-out within the agreed project roles.

CLT

Cross-laminated timber

Layered timber panels can be used for project-specific wall, floor and roof applications. Panel size, layup, connection design and protection are selected for the required performance.

Glulam

Glue-laminated timber

Engineered members can form columns, beams and other structural elements where their geometry, loading, connections and exposure suit the design.

Hybrid

Combined systems

Timber may be integrated with concrete cores, steel connections, topping systems or other materials to resolve stiffness, vibration, fire, durability and construction needs.

Seven feasibility gates for taller timber buildings

A credible feasibility study tests the whole system before it promises speed, sustainability or cost benefits. These gates are closely connected; changing one can alter the others.

  • Structural scheme: grids, spans, stability, vibration, robustness and connection strategy.
  • Fire strategy: required fire resistance, encapsulation, exposed timber, cavities, penetrations and sprinkler interfaces.
  • Moisture control: transport protection, storage, temporary exposure, sealing, membranes and drying plans.
  • Acoustics: floor build-ups, junctions, flanking paths and service penetrations.
  • Façade and services: tolerances, fixings, risers, penetrations, access and maintainable interfaces.
  • Supply chain: certified product information, manufacturing capacity, lead times and transport limits.
  • Site delivery: crane strategy, laydown, lifting sequence, temporary stability, weather response and quality records.
Important: mass timber is not automatically low-carbon, fire-safe, faster or cheaper. Those outcomes must be demonstrated for the selected products, design, logistics, approvals and construction plan.

Australian fire and compliance planning

The National Construction Code includes requirements and limitations for fire-protected timber, while taller or more complex buildings may require project-specific Performance Solutions. Compliance cannot be reduced to a generic claim that thick timber “burns predictably” or is safer than steel.

The project team needs to coordinate required fire-resistance levels, encapsulation, charring assumptions where relevant, cavity barriers, compartmentation, sprinkler systems, façade interfaces and penetrations. Evidence must match the proposed product and installed system, including representative test data, engineering assessments and construction details where required.

SCE can bring engineering, design, procurement and construction together through its qualified team and multidisciplinary partners. A mass-timber scope identifies the structural, fire, acoustic, façade and services specialists responsible for the design and verification, with independent statutory certification and authority decisions clearly assigned. SCE’s current organisational and project controls are outlined in the SCE construction management system and credentials and verification pathway.

From digital model to protected installation

Mass-timber projects can benefit from off-site manufacture and planned assembly, but they demand early decisions. Late changes to openings, connections or services can disrupt manufacturing and create expensive site work.

Coordinate the design model

Resolve structure, architecture, façade, services, fire and acoustic interfaces before components are released for manufacture.

Confirm products and tolerances

Review shop information, connection requirements, lifting points, fixings, protection systems and acceptable dimensional tolerances.

Plan transport and lifting

Match delivery sizes and sequence to route limits, crane capacity, unloading, laydown and the installation programme. Our guide to alternatives to tower cranes explains why equipment selection must follow the site and lift requirements.

Protect the moisture pathway

Define factory wrapping, transport controls, temporary weather protection, drainage, inspection and response steps for wetting events. WoodSolutions Technical Design Guide 53 explains construction moisture management and remedial action. Record acceptance checks before timber is enclosed by later work.

Record the installed system

Capture product traceability, connections, penetrations, protection layers, inspections and close-out evidence required by the project.

Frank Manesh’s earlier Monaro Highway experience illustrates the importance of checking lift constraints before choosing plant. Airport-related height restrictions required a two-crane lift arrangement for bridge work. For timber construction, the same planning discipline means checking component size, reach, capacity, access and temporary stability before manufacturing and delivery dates are fixed.

Claims to test before selecting mass timber

Proposed benefitEvidence to requestDelivery question
Lower embodied carbonProduct-specific environmental declarations, verified quantities, transport and whole-building life-cycle assumptionsDoes the comparison use equivalent structural, fire, acoustic and durability performance?
Faster programmeManufacturing, approvals, shipping, crane, installation and follow-on trade sequenceAre design freeze and procurement dates achievable?
Reduced site labourConnection details, lifting studies, temporary works and crew productivity assumptionsWhat work moves off site, and what new interfaces appear on site?
Exposed timber finishFire, acoustic, durability, repair, cleaning and appearance requirementsCan the desired exposure be retained without compromising other performance needs?

Early-stage clients can also use SCE’s project tools and planning resources to organise scope, assumptions and next steps before requesting project-specific advice.

Bring construction reality into the mass-timber conversation

Sydney Contracting Engineers offers integrated engineering, procurement and construction planning for NSW building projects. We assess the timber system alongside buildability, staging, site logistics, specialist design and handover requirements. Share the concept, current design information and known constraints so the team can develop a coordinated scope.

Contact Sydney Contracting Engineers

Frequently asked questions

Read our engineering design and investigation questions when turning material and construction options into a project-specific brief.

What is a timber skyscraper?

It is a tall building that uses mass timber as a significant part of its structural system. Many are hybrid buildings that also use concrete, steel and other materials to satisfy project-specific structural, fire, acoustic and construction requirements.

What is the difference between CLT and glulam?

CLT is commonly manufactured as layered panels, while glulam is commonly manufactured as beam or column members. Their actual use depends on the engineered design, product properties, connections, spans and performance requirements.

Are mass-timber buildings compliant with the NCC?

They can be, provided the proposed building and systems demonstrate compliance with the applicable NCC requirements. The pathway may involve Deemed-to-Satisfy provisions, Performance Solutions or both, supported by the required project evidence.

Is mass timber automatically lower carbon?

No. Carbon outcomes depend on forestry and product evidence, manufacturing, transport, material quantities, design life, replacement, end-of-life assumptions and the other materials used in the complete building.

What is the main construction risk?

There is no single risk. Moisture exposure, design coordination, penetrations, tolerances, fire protection, lead times, logistics and temporary stability all require early, connected planning.

How is mass timber protected from rain during construction?

The project needs a moisture-management plan covering storage, transport protection, temporary weather protection, drainage, inspection and drying or remedial action after wetting. Agree product-specific acceptance criteria and check the condition before later layers conceal the timber. SCE coordinates these controls with the installation sequence, supplier requirements and responsible designers so protection continues through delivery and handover.

How can SCE assist with a mass-timber project?

SCE can develop and deliver an integrated engineering, design, procurement and construction package through its qualified team and multidisciplinary partners. The scope connects the timber system with structure, fire, moisture, services, logistics, installation and handover, and identifies the responsible practitioners and independent statutory appointments.
