Redi-Rock Retaining Walls: A NSW Project Planning Guide

Redi-Rock is a modular precast concrete retaining-wall system. Its potential value comes from matching the right wall type to the site, loads, ground conditions, access, drainage and approval pathway. A product should not be assumed to be the cheapest option without that assessment.

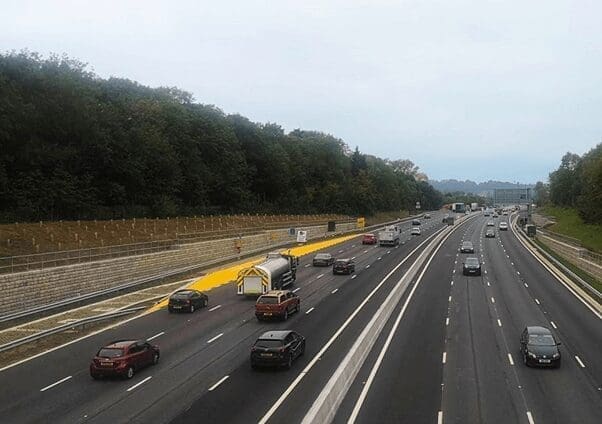

Divided highway beside retaining walls and roadside slopes
Divided highway beside retaining walls and roadside slopes.

What is a Redi-Rock retaining wall?

Redi-Rock is a family of large, wet-cast precast concrete blocks used for engineered retaining and freestanding walls. The manufacturer provides gravity, reinforced and other system options, together with product data, construction details and design resources. A gravity configuration relies mainly on block mass and wall geometry; a reinforced configuration uses a different engineered arrangement where the retained height, loading or available footprint calls for it.

The system name does not replace project design. Wall height, soil properties, groundwater, surcharge loads, nearby structures, services, boundaries, access and the proposed finish can all change the appropriate solution. The useful question is therefore not simply “How much does Redi-Rock cost?” but “Which retaining-wall arrangement meets this site’s documented requirements with the best whole-of-project value?”

If the concern is an existing wall showing movement, cracking, drainage failure or distress, use SCE’s separate retaining wall repair planning guide to organise investigation, professional inputs, options, staging and closeout.

Planning boundary: this guide supports early project decisions. A site-specific retaining wall may require geotechnical input, structural design, certification, approvals and manufacturer-specific detailing by the appropriate parties.

Where modular construction may create economic value

Precast modular systems can reduce some site activities because the principal wall units arrive formed and are installed in a repeatable sequence. The actual benefit depends on whether the site can receive, handle and place the units efficiently and whether the selected wall type limits excavation or reinforcement compared with a credible alternative.

Programme certainty

Precast components can simplify repetitive wall construction and reduce reliance on site-built formwork. The programme benefit must still include procurement lead time, transport, lifting, base preparation, drainage and inspection hold points.

Constrained-site potential

A gravity solution may reduce excavation behind the wall where the engineered geometry suits the site. This can matter near boundaries, roads, existing assets or other constrained work fronts, but only after design and approval checks.

Repeatable finish

Factory-made units provide a consistent module and a range of formed finishes. Appearance, caps, barriers, fences and interfaces should be resolved in the brief rather than treated as late extras.

Whole-of-life review

Durability and maintenance depend on the concrete specification, exposure, detailing, drainage, installation and inspection regime. Compare documented design life and maintenance requirements, not marketing language alone.

Gravity or reinforced: begin with the site constraints

Redi-Rock publishes resources for more than one wall type. Early option selection should be led by an engineer’s interpretation of the site and loads, followed by manufacturer-specific checks and a buildability review.

Planning questionGravity-wall considerationReinforced-wall consideration
How stability is achievedPrimarily through the mass and geometry of the block system.Through an engineered reinforced soil mass and connected wall units.
Available footprintCan reduce excavation behind the wall in suitable conditions, while requiring sufficient base width.Requires room and suitable material for the designed reinforcement zone.
Height and loadingFeasibility changes with wall height, batter, soil, water and surcharge loads.May suit taller or more heavily loaded conditions, subject to full project design.
Construction planningNeeds verified lifting access, base preparation, drainage and placement sequence.Adds reinforcement placement, compaction, testing and staged quality controls.

How much does a Redi-Rock retaining wall cost?

The installed cost depends on the engineered wall configuration, ground conditions, freight, lifting access and the complete construction scope. A block supply price is only one part of the budget. SCE compares the viable systems against the same site requirements, including drainage, temporary works, approvals and reinstatement.

Confirm the wall configuration before ordering

Compare the complete specified wall section, including the parts behind the visible block face. Block depth, setback, reinforcement, foundations and drainage can change the space, excavation and delivery requirements. If the wall height, loading, unit type or alignment changes, have the responsible designer review the change before procurement. Supplier availability should inform the programme without becoming an unreviewed design substitution.

Ground model and design loads

Record the geotechnical assumptions, retained height, slopes, groundwater, surcharge, traffic, structures and other loads that the wall must address.

Drainage and water management

Resolve subsoil drainage, outlets, overland flow, erosion and maintenance access. Water pressure can change both wall performance and the required construction scope.

Approvals, boundaries and services

Check the planning pathway, consent conditions, certifier requirements, public-land interfaces, easements, utilities, neighbouring property and any road-authority approval.

Logistics and temporary works

Price delivery, unloading, lifting plant, crane or excavator reach, exclusion zones, traffic control, working platforms, excavation support and weather exposure.

Complete system scope

Include foundations, drainage aggregate, geotextiles, reinforcement where required, corners, curves, caps, barriers, fences, landscaping interfaces, testing and as-built records.

Comparable alternatives

Compare the same design basis and inclusions across modular block, cast-in-place concrete, reinforced masonry, gabion, pile or other viable systems. A headline unit rate is not a like-for-like project comparison.

How SCE tests the ground assumptions

During the Emu Heights creek-crossing reconstruction, SCE recommended geotechnical investigation before the foundation approach was finalised. Boreholes found rock shallower than originally assumed, but groundwater still needed to be addressed. We brought the geotechnical, design and construction inputs together to review the practical solution. For a retaining-wall project, the same approach means checking actual ground and water conditions before committing to a wall system, then coordinating its foundations, drainage, access and construction sequence.

NSW approval and compliance checks

The NSW Planning Portal explains that exempt earthworks, retaining walls and structural supports must satisfy the applicable State policy criteria, be structurally adequate, follow manufacturer specifications and comply with the Building Code of Australia. It also notes that work on or over public land or roads requires the relevant council or Transport for NSW approval. Where exempt-development criteria are not met, another planning pathway may apply.

Approval is only one part of the brief. The design team may also need to address drainage, geotechnical conditions, structural adequacy, neighbouring assets, utilities and construction sequencing. Confirm the complete package before procurement, including product supply, design, construction, testing and certification. SCE can combine these disciplines in an integrated scope, with the deliverables and required independent approvals identified in writing.

Build a procurement-ready retaining-wall brief

Better early information produces a more useful option comparison. Assemble the following before asking for a construction response:

Site information

Survey, boundaries, levels, access, nearby buildings, services, easements, photographs and known ground or water constraints.

Design basis

Geotechnical information, proposed wall alignment and height, loads, drainage concept, finish, barriers, fences and required design life.

Approval status

Applicable planning pathway, consent conditions, authority interfaces and the nominated designer, certifier and other practitioners.

Commercial comparison

Consistent inclusions, exclusions, assumptions, lead times, temporary works, testing, handover records and maintenance requirements.

For associated excavation, concrete and drainage packages, review SCE’s earthworks, concrete and underground services.

SCE’s completed North Richmond retaining-wall and drainage project and Seven Hills retaining-wall project provide retaining-wall construction context. They are not presented as proof that Redi-Rock was used on those projects.

Frequently asked questions

Read our civil drainage and structure questions when considering retaining-wall design and construction.

What is a Redi-Rock retaining wall?

Redi-Rock is a modular precast concrete wall system. The product family includes gravity and reinforced retaining-wall configurations as well as freestanding components. The appropriate arrangement depends on project-specific design, ground conditions, loads, drainage, geometry and access.

Is Redi-Rock always cheaper than a conventional retaining wall?

No. A modular system may reduce some formwork, excavation or site programme in suitable conditions, but the real comparison must include design, approvals, units, transport, lifting, foundations, drainage, reinforcement where required, temporary works, access, testing and finishes.

How does a gravity retaining wall work?

A gravity wall primarily uses its own mass and geometry to resist the pressure from retained material. Stability still depends on the engineered wall section, soil and groundwater conditions, base preparation, drainage, surcharge loads and correct installation.

Does a retaining wall need approval in NSW?

It depends on the site and proposal. Some retaining-wall work may be exempt or complying development only when every applicable standard is met; other work may need development consent or additional authority approval. Check the current NSW Planning Portal requirements, council controls and the project’s certifier or planning adviser.

Does a low Redi-Rock retaining wall still need drainage?

A low wall still needs its water conditions assessed; height alone does not decide the drainage arrangement. Soil, groundwater, uphill runoff, nearby loads and the selected wall system affect the design. The design should address water pressure, a suitable discharge route and maintenance access. Do not omit drainage merely because a wall is 600 mm high or copy a detail from a different site.

What is the maximum height of a gravity retaining wall?

There is no single maximum height that applies to every site or Redi-Rock arrangement. The selected blocks and geometry, retained ground, foundation conditions, water and surcharge loads must be assessed together. SCE coordinates the structural and geotechnical inputs with the manufacturer’s system information, then compares a gravity solution with reinforced or other wall options where the site requires them.

What information is needed for a retaining-wall budget?

Provide a survey, wall alignment and levels, retained heights, geotechnical information where available, design loads, drainage concept, access and lifting constraints, services, boundaries, approval status, finishes and the required programme. State which party owns design, certification and authority interfaces.

Can SCE design and certify a Redi-Rock wall?

SCE can deliver retaining-wall engineering, design and construction through its team and appropriately appointed specialists. The engagement should identify the responsible designer, geotechnical inputs, construction scope and required approvals. Independent statutory certification and authority acceptance remain with the appropriately appointed certifier or authority; they are not implied by a construction quotation.

Turn the wall concept into a defined civil brief

Plan the ongoing drainage inspection and maintenance access alongside the wall design. Explore SCE’s building and civil capability, service locations and certifications and credentials when preparing the project brief.

Bring the site information, design status, approvals, access constraints and required outcome together before comparing systems. SCE brings engineering, design, procurement and construction together to assess the retaining-wall options, plan delivery and prepare the agreed testing, certification and handover records through the appropriately qualified project team.
