Structural Remediation NSW: Investigation and Repair Planning
Structural remediation is not simply patching a crack or coating a damaged surface. A sound repair programme establishes what has failed, why it failed, whether the building is safe to use, what design and approvals are required, and how the completed work will be verified.
This guide explains a practical pathway for owners, strata committees and property teams planning structural remediation in NSW. It is general information, not structural advice for a particular building. Where movement, falling material or loss of load-carrying capacity is suspected, keep people clear and obtain advice from an appropriately qualified practitioner.
What structural remediation covers
Structural remediation addresses defects or deterioration that affect, or may affect, the way a building element carries load, resists movement or remains durable. The work may involve concrete, masonry, steel, timber, façades, balconies, foundations or interfaces between building systems. It can range from a local repair to a staged programme across an occupied strata building.
A visible symptom does not establish the repair. Cracking may result from shrinkage, thermal movement, corrosion, settlement, overloading or a connection problem. Spalling can expose reinforcement, but the extent of corrosion and the moisture or chloride source still need investigation. Water staining may identify a pathway rather than the original entry point. Treating only what can be seen can leave the cause active behind the repair.
Immediate risk
Is there loose material, instability, a damaged support, progressive movement or another reason to isolate the area or install temporary controls?
Underlying mechanism
What evidence explains the defect: moisture, corrosion, movement, inadequate detailing, material breakdown, impact or a combination of causes?
Repair objective
Is the purpose to make safe, restore capacity, arrest deterioration, manage water, reinstate durability, or deliver several of these outcomes together?
Read the symptom as evidence, not a diagnosis
| Observed condition | Possible questions | Useful evidence |
|---|---|---|
| Cracking in concrete or masonry | Is it active or dormant? Does it follow a joint, reinforcement line, opening or support? Is there displacement? | Dated crack mapping, monitoring points, drawings, movement history and nearby moisture observations. |
| Spalling or exposed steel | How far does delamination extend? Is reinforcement section loss present? What is driving corrosion? | Hammer survey where appropriate, cover survey, testing selected by the engineer, photographs and repair history. |
| Rust staining or corroded connections | Is moisture reaching embedded steel, fixings or façade components? Are incompatible metals or failed seals involved? | Close inspection, moisture-path review, connection details and safe-access findings. |
| Deflection, settlement or misalignment | Is movement continuing? Has load, drainage, soil condition or adjacent work changed? | Level or survey data, monitoring, geotechnical information, load history and original structural records. |
| Water ingress near structural elements | Where does water enter, travel and exit? Has leakage affected reinforcement, anchors or supports? | Rain-event records, controlled testing where suitable, membrane and drainage details, and intrusive observations. |
A seven-stage structural remediation workflow
- Make the site safe. Record the reported event or symptom, restrict access where necessary, and determine whether temporary propping, restraint, weather protection or removal of loose material needs specialist input. Temporary works must be planned for the actual loads and sequence.
- Collect the building record. Assemble drawings, specifications, previous reports, maintenance history, leak records, photographs, warranties and earlier repairs. Mark unknowns rather than treating incomplete records as fact.
- Inspect and investigate. Begin with a visual and tactile survey appropriate to the risk. Map defects consistently. The responsible practitioner can then select targeted non-destructive or intrusive testing to answer defined questions, avoiding a large test programme with no decision purpose.
- Define the cause and extent. Bring observations, testing, exposure conditions and structural behaviour together. Where confidence remains limited, state the assumptions and identify hold points for further opening-up during the work.
- Prepare the repair design and scope. The documents should describe substrate preparation, removal limits, reinforcement treatment, repair geometry, materials, sequencing, temporary works, access, interfaces, inspection points, acceptance criteria and reinstatement. The design must respond to the cause rather than only the damaged surface.
- Construct with controlled verification. Use pre-start samples, product data, competent supervision, staged inspections and records of hidden work. Deviations and newly exposed conditions should be referred back through the defined design and variation process before they are covered.
- Close out and monitor. Compile photographs, test results, material batches, inspection records, declarations where applicable, as-built information, warranties and maintenance requirements. Where movement or exposure risk remains, set a practical monitoring trigger and review date.
Choosing a repair method
There is no universal structural-repair product. A compatible system is selected after the substrate, exposure, movement, required capacity, constructability and design life have been considered. Concrete repairs may involve local breakout and reinstatement, crack treatment, reinforcement replacement or supplementation, protective systems, strengthening or a combination. Steel and façade work may require connection renewal, corrosion treatment, restraint or replacement. Foundation problems may require drainage, ground investigation or specialist underpinning design.
Material compatibility matters. Strength alone is not a sufficient selection rule: bond, stiffness, shrinkage, thermal response, vapour behaviour, curing, installation thickness and environmental exposure can all influence performance. Product limitations, surface preparation and site conditions must be reflected in the method statement and inspection plan.
Regulated designs and project roles in NSW
Remedial building work is a broad term for repair, maintenance, upgrades, defect rectification and corrective work to an existing building. In NSW, the Design and Building Practitioners framework can apply to remedial building work on regulated buildings. The current classes and commencement dates must be checked against the project rather than assumed from the building’s appearance.
Building Commission NSW states that regulated designs relating to building elements or performance solutions must be prepared and declared by an appropriately registered design practitioner, then lodged through the prescribed process before relevant building work starts. Structural engineering, façade design, waterproofing and other disciplines have distinct registration scopes. A contractor’s construction methodology and quality records do not replace a regulated design or a design compliance declaration where one is required.
Owner or owners corporation
Defines the brief, appoints competent advisers, provides records, approves access and funding, and maintains governance over decisions and variations.
Engineer or design practitioner
Investigates within the agreed scope, documents assumptions, develops or reviews the design within their registration, and sets inspection or hold-point requirements.
Building practitioner or contractor
Plans and performs the work to the issued documents, manages site safety and sequencing, records quality evidence, and raises unforeseen conditions before departure from the design.
The certifier has a separate statutory role and does not become the project designer or site supervisor. Approval pathways, licences, planning requirements, strata resolutions and DBP obligations should be confirmed early. This is particularly important where structural work interfaces with façade, waterproofing, fire safety systems or services.
Planning work in an occupied building

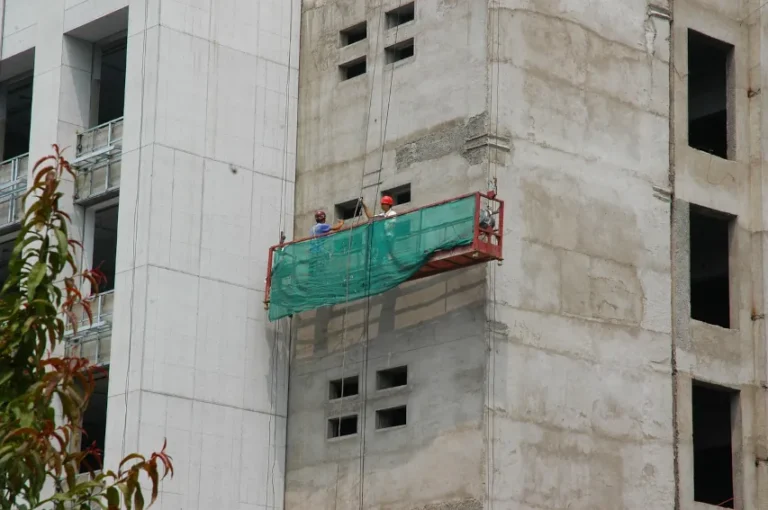

Structural remediation often occurs around residents, customers or staff. Access, noise, dust, falling-object controls, temporary loss of balconies or parking, deliveries and weather exposure can affect the construction sequence. A building-specific communication plan should explain where work will occur, what occupants must do, which services may be interrupted and how urgent concerns are reported.
The scope should distinguish investigation access from full production access. Opening-up may reveal a larger defect, changed reinforcement arrangement or unsuitable substrate. Tender documents should explain how provisional quantities, latent conditions, design clarifications and agreed variations will be measured. That makes pricing easier to compare and reduces pressure to conceal uncertainty.
For strata property, common-property responsibility and the required approval pathway should be confirmed before procurement. Records should remain with the building so future committees and advisers can understand what was found, what was repaired and what still requires observation.
Quality assurance and handover
Inspection and test plans turn the design into checkable site controls. Typical hold points may include confirming breakout limits, inspecting exposed reinforcement or connections, approving the prepared substrate, checking reinforcement installation, recording environmental conditions, witnessing samples or tests, and reviewing the completed repair before finishes conceal it. The exact controls depend on the design.
A useful handover pack is more than a set of product brochures. It should identify the area repaired, issued drawings and revisions, approved variations, installer records, inspection evidence, test results, photographs before concealment, product batches, curing or commissioning records, declarations and certificates required for the project, and future inspection or maintenance actions. Where the remedy manages rather than eliminates a mechanism, the monitoring regime should be explicit.
Questions to ask before appointing a remediation team
- Who is responsible for diagnosis, structural design, regulated declarations, construction and independent certification?
- Which assumptions remain unverified, and what opening-up or testing will resolve them?
- How will active movement, water entry or corrosion drivers be treated rather than covered?
- What are the temporary works, access controls and occupied-building constraints?
- Which hold points prevent critical work from being concealed before inspection?
- How will quantities, latent conditions and design changes be documented and valued?
- What evidence will be delivered at handover, and what must be inspected again later?
Frequently asked questions
What is the difference between structural remediation and cosmetic repair?
A cosmetic repair changes appearance. Structural remediation is based on investigation and addresses a defect that affects, or could affect, structural performance or durability. Some projects need both, but appearance should not be used as proof that the underlying cause is resolved.
Does every crack mean a building is unsafe?
No. Cracks have many possible causes and levels of significance. Location, width, displacement, pattern, age and whether movement is continuing all matter. New, widening or displaced cracks warrant timely competent assessment, especially near supports or after an unusual event.
Can a contractor choose the repair system after opening up?
The documents may allow defined selections or hold points, but a change affecting the structural solution should be referred to the responsible designer. On regulated work, changes to a building element or performance solution may require updated regulated designs and lodgement before the varied work proceeds.
How long does structural remediation take?
Duration depends on investigation, approvals, access, extent, temporary works, material lead times and what opening-up reveals. A staged programme with decision points is more reliable than a fixed promise made before the condition is understood.
Will concrete repair stop water ingress?
Not automatically. Water can move through joints, cracks, membranes, façades, drainage paths and service penetrations. Concrete repair and water-management work must be coordinated so the source and travel path are addressed.
What should be included in a remediation tender?
Include the investigation basis, drawings, technical specification, quantities or measurement rules, access assumptions, temporary works responsibilities, programme constraints, hold points, testing, exclusions, variation process and required handover records.
Who should inspect completed structural repairs?
The inspection plan should nominate the responsible competent person for each stage. This may include the design practitioner, specialist consultant, building practitioner and certifier in their separate roles. Critical inspections often occur during the work, before repaired areas are concealed.
